Fully Automatic Palladium Sheet Automatic Loading Machine

Name: Fully Automatic Palladium Sheet Automatic Loading Machine
Brand: SinuoWei
SKU: Battery Aluminum Shell Conveyor Line
Rating: 4.8 (132 reviews)

Product Details

Place of Origin: Xiamen City, Fujian Province, China

Brand Name: SinuoWei

Model Number: Battery Aluminum Shell Conveyor Line

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Get Best Price

Product Details

Product Description

Highlight:

Equipment Size:	Designed According To Customer Requirements	Equipment Weight:	2-5t
Pressure:	0.5-0.8MPa(72.5-116.0 PSI)	Product Compatibility:	Length: 50mm-90mm And Above Width: 30mm-50mmm And Above Height: 5-10mm
Positioning Accuracy:	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel And Zinc Prohibited	Equipment Name:	Fully Automatic Palladium Sheet Automatic Loading Machine
Installation Location:	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel And Zinc Prohibited	Working Cycle:	12ea-25s 26ea-45s

Equipment Size:	Designed According To Customer Requirements
Equipment Weight:	2-5t
Pressure:	0.5-0.8MPa(72.5-116.0 PSI)
Product Compatibility:	Length: 50mm-90mm And Above Width: 30mm-50mmm And Above Height: 5-10mm
Positioning Accuracy:	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel And Zinc Prohibited
Equipment Name:	Fully Automatic Palladium Sheet Automatic Loading Machine
Installation Location:	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel And Zinc Prohibited
Working Cycle:	12ea-25s 26ea-45s

Fully Automatic Palladium Sheet Automatic Loading Machine

Product Description:

This equipment is used to realize the collaborative robot to clamp the palladium sheet and place it on the module tooling. Its structure mainly includes the collaborative robot, palladium sheet clamping mechanism, palladium sheet feeding mechanism, palladium sheet buffer mechanism, and CCD re-inspection system. CCD vision captures feature points and finds the placement position of the palladium sheet. After the palladium sheet is placed, it will be re-inspected by CCD vision to determine whether the placement of the palladium sheet is qualified to ensure the reliability of the next station.

Technical Parameters:

Technical Parameter	Value
Equipment Name	Fully Automatic Palladium Sheet Automatic Loading Machine
Positioning Accuracy	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel and Zinc Prohibited
Working Cycle	12ea-25s 26ea-45s
Equipment Size	Designed According To Customer Requirements
Installation Location	Dust-free Workshop, Equipment Noise Index ≤75dB, Copper, Nickel and Zinc Prohibited
Equipment Weight	2-5t
Product Compatibility	Length: 50mm-90mm And Above Width: 30mm-50mmm And Above Height: 5-10mm
Pressure	0.5-0.8MPa(72.5-116.0 PSI)
Equipment failure	<0.3%
Warranty period	1 year
Additional services	Professional technical training

Machine Show:

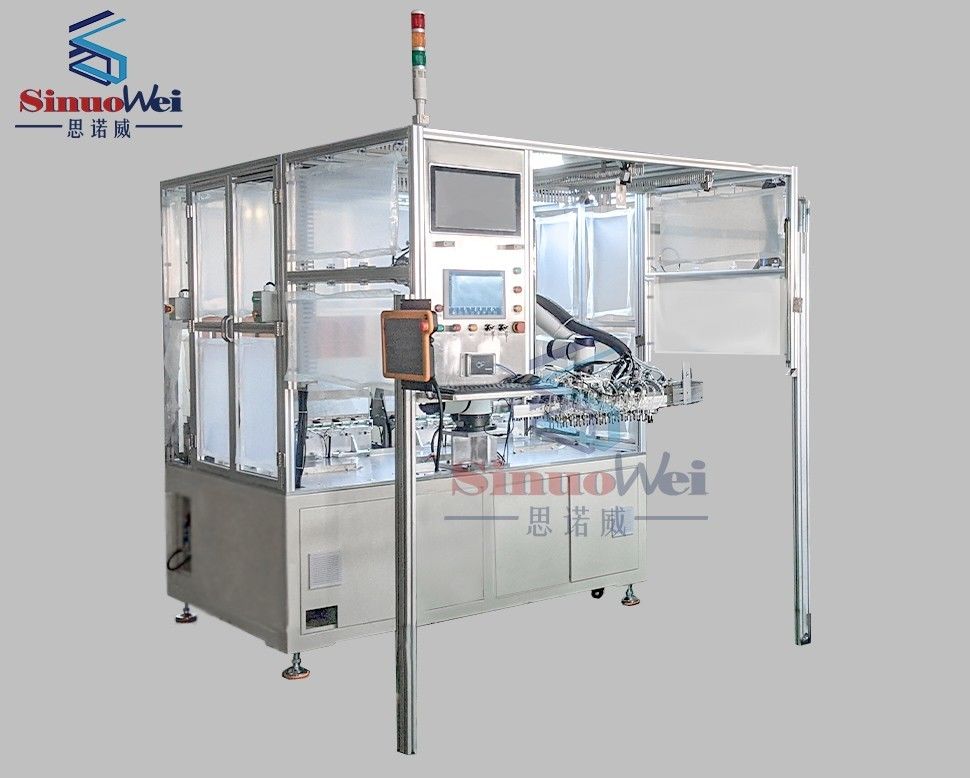

Fully Automatic Palladium Sheet Automatic Loading Machine 0

Fully Automatic Palladium Sheet Automatic Loading Machine 1
